Stembridge Tower Mill, Somerset, England
Raising windmill near Milo, Alberta, ca. 1910s
Wind turbine at Summerview 2 Wind Facility, 2010
  • Spear points from the Clovis phase found in present-day Alberta.<br/>Source: Historical Resources Management Branch, Archaeological Survey

    Clovis phase spear points used in present-day Alberta.

    Clovis phase spear points represent the oldest hunting technology in Alberta, and indeed all of North America. These fluted, jagged stone points would be attached to a bone or wooden shaft and used to hunt enormous prey such as mammoths and mastodons.
    Source: Historical Resources Management Branch, Archaeological Survey

  • Diagram of an atlatl (spear-thrower)<br/>Source: Courtesy of Head-Smashed-In Buffalo Jump

    Atlatl (spear-thrower) technology emerges in present-day Alberta.

    Atlatls were used by early hunter’s to increase the velocity of their projectile weapons. Spears or darts thrown with an atlatl could deliver devastating wounds to an animal, allowing the hunter to kill the animal from a safe distance.
    Source: Courtesy of Head-Smashed-In Buffalo Jump

  • Representation of an early hunter drawing a bow<br/>Source: Courtesy of Head-Smashed-In Buffalo Jump

    Bow and arrow technology reaches present-day Alberta.

    Bow and arrow technology in North America appears to have developed first in the Arctic before spreading south throughout the continent. The bow and arrow was ideally suited for use in the wide open spaces of the Great Plains, and was widely adopted across the region.
    Source: Courtesy of Head-Smashed-In Buffalo Jump

  • Petroglyph of a mounted hunter chasing a bison, Milk River<br/>Source: Royal Alberta Museum

    The ‘Horse Revolution’ begins in present-day Alberta.

    Horses were brought to North America by Spanish colonists in the sixteenth century. From the Spanish colony of New Mexico, horses spread across North America, reaching present-day Alberta in the 1730s. The adoption of the horse had a significant impact on the hunting/transportation patterns of Plains First Nations peoples.
    Source: Royal Alberta Museum

  • Swimmers Enjoying the Banff Hot Springs, ca. 1935<br/>Source: Whyte Museum of the Canadian Rockies, v263-na-3562

    Rocky Mountains National Park is established by the Canadian government.

    One of the main attractions of the new park was the site’s natural hot springs. The luxurious Banff Springs Hotel, built by the Canadian Pacific Railway in 1888, pumped water from the hot springs into its swimming pools and treatment rooms. Tourists flocked to the site to take advantage of the water’s supposed therapeutic healing powers.
    Source: Whyte Museum of the Canadian Rockies, v263-na-3562

  • Calgary Water Power Company hydroelectric plant, n.d.<br/>Source: Glenbow Archives, NA-4477-44

    The Calgary Water Power Company opens Alberta’s first hydroelectric plant.

    The company was owned by entrepreneur Peter Prince, who also ran the Eau Claire & Bow River Lumber Company. From 1894 to 1905, the company was the major electricity provider for the city of Calgary.
    Source: Glenbow Archives, NA-4477-44

  • The city power plant in Edmonton, 1912<br/>Source: Glenbow Archives, NC-6-271

    The City of Edmonton purchases the Edmonton Electric Lighting Company.

    The decision in favour of public ownership was made after repeated disruptions in service from the privately-owned utility. Edmonton was the first major urban centre in Canada to own its own electricity utility.
    Source: Glenbow Archives, NC-6-271

  • Changing the name from Calgary Power to TransAlta, 1981<br/>Source: Photo courtesy of TransAlta

    The Calgary Power Company is formed.

    The founder of the company, Max Aitken, was initially drawn to the region by its vast hydroelectricity potential. The company would develop into Canada’s largest investor-owned utility. In 1981, the company changed its name to TransAlta Utilities Corporation, in order to better reflect its provincial reach.
    Source: Photo courtesy of TransAlta

  • Calgary Power’s power house at Horseshoe Falls on the Bow River, ca. 1912<br/>Source: Glenbow Archives NA-3544-28

    Alberta’s First hydroelectric dam opens at Horseshoe Falls.

    Owned and operated by Calgary Power, the Horseshoe Falls Dam was the first of two such facilities built on the Bow River system prior to the First World War. A second hydroelectric dam began operations at Kananaskis Falls in 1913.
    Source: Glenbow Archives NA-3544-28

  • Ghost Hydroelectric Dam, 1935<br/>Source: Glenbow Archives, NA-5663-44

    The Ghost Hydroelectric Dam begins operations

    This massive facility was the largest hydroelectric dam in Alberta at the time it was built. The Ghost Power Plant more than doubled the amount of electricity generated by Calgary Power, which was already the province’s main energy supplier.
    Source: Glenbow Archives, NA-5663-44

  • Rural electrification crew at work near Irma, 1951<br/>Source: Glenbow Archives, NA-4160-20

    The first Rural Electrification Association (REA) in Alberta is established in Springbank.

    Over the next two decades, a total of 416 REAs would be established across the province. These organizations would play a crucial role in the spread of electricity to rural Alberta.
    Source: Glenbow Archives, NA-4160-20

  • CCF Advertisement in the People’s Weekly, August 14, 1948, urging people to support public utility ownership<br/>Source: Image courtesy of Peel’s Prairie Provinces, a digital initiative of the University of Alberta Libraries

    Voters of Alberta narrowly reject proposal for public ownership of electricity utilities.

    The 1948 provincial election included a plebiscite concerning ownership of electricity utilities in Alberta. Rural areas largely voted in favour of public ownership, while urban voters (particularly in southern Alberta) supported a continuation of private ownership. In the end, the vote was extremely close, with public ownership defeated by a mere 151 votes.
    Source: Image courtesy of Peel’ Prairie Provinces, a digital initiative of the University of Alberta Libraries

  • Five of the turbines installed at Cowley Ridge Wind Farm<br/>Source: Photo courtesy of TransAlta

    Cowley Ridge Wind Farm begins operations near Pincher Creek.

    Cowley Ridge was Canada’s first commercial wind farm. A total of fifty-two wind turbines were installed in 1993-94. In 2000, the project was expanded with the addition of fifteen new (and much more powerful) turbines.
    Source: Photo courtesy of TransAlta

  • Aerial view of Drake Landing Solar Community<br/>Source: Wikimedia Commons/CA-BY-SA-3.0

    Drake Landing Solar Community opens near Okotoks, Alberta.

    Drake Landing is North American’s first fully integrated solar community. This award-winning initiative uses solar heating technology to provide the community with the majority of its space heating and hot water needs.
    Source: Wikimedia Commons/CA-BY-SA-3.0

  • AAdvanced Energy Research Facility, Edmonton, 2011LT<br/>Source: Photo Courtesy of Enerkem

    The City of Edmonton announces the launch of the ‘waste-to-biofuels’ project.

    The waste-to-biofuels project will convert garbage into biofuel by harvesting carbon from the waste material. The project includes an Advanced Energy Research Facility, which opened in 2012.
    Source: Photo Courtesy of Enerkem

Play Timeline

Modern Turbines: How They Work

Wind turbines operate on the same general principle as windmills and wind pumps; blades capture the kinetic energy of the wind and convert it into a new form of energy. Instead of converting the wind’s energy into mechanical energy, however, turbines harness the wind’s power to generate electricity.

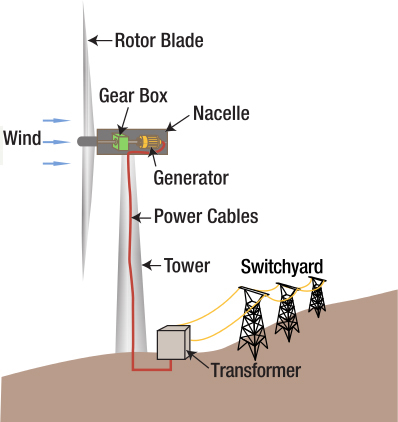

The large-scale wind turbines appearing on Alberta’s landscape are called horizontal-axis wind turbines. They feature two or three propeller-like blades attached to a rotor at the top of a tower. When a rotor blade is placed in the path of wind, the wind will push on it, transferring some of its own energy of motion to the blade. The wind-propelled blades spin a low-speed main rotor shaft connected through a gearbox that transfers to a high-speed shaft that drives an electricity-producing generator. The entire turbine assembly is turned into the wind by computer-controlled motors triggered by wind sensors.

Turbines are designed to make use of the specific wind resources where they are located. Aerodynamic modelling is

used to decide on the optimal size of a tower, which can range from 60 to 90 m (200 to 300 ft.) in height as well as the number and shape of blades used. The blades can measure from 20 to 40 m (66 to 300 ft.) in length and rotate at 10 to 22 rpm. At 22 rpm the tip speed exceeds 90 m/s (300 ft/s.).

The amount of electricity a turbine can produce is determined by a number of factors. Available wind resources starting at about 12.8 km per hour (8 mph) and reaching between 40 and 88 km per hour (25 and 55 mph) are required. The larger the area swept by blades, the more power that can be produced, while the height of a tower increases efficiency by extending into areas of greater wind velocities. Towers start to capture optimum kinetic wind energy at roughly 30 m (98 ft.) or more above ground level. Air density also affects the amount of kinetic energy pushing on rotor blades, with high-altitude lower air pressure locations being less efficient than lower altitudes where heavier dense air drives windmills more effectively.
