Japanese woodblock print of waterwheel
Calgary Water Power Company hydroelectric plant, n.d.
Calgary Power’s dam at Lake Minnewanka, Alberta, 1912
  • Spear points from the Clovis phase found in present-day Alberta.<br/>Source: Historical Resources Management Branch, Archaeological Survey

    Clovis phase spear points used in present-day Alberta.

    Clovis phase spear points represent the oldest hunting technology in Alberta, and indeed all of North America. These fluted, jagged stone points would be attached to a bone or wooden shaft and used to hunt enormous prey such as mammoths and mastodons.
    Source: Historical Resources Management Branch, Archaeological Survey

  • Diagram of an atlatl (spear-thrower)<br/>Source: Courtesy of Head-Smashed-In Buffalo Jump

    Atlatl (spear-thrower) technology emerges in present-day Alberta.

    Atlatls were used by early hunter’s to increase the velocity of their projectile weapons. Spears or darts thrown with an atlatl could deliver devastating wounds to an animal, allowing the hunter to kill the animal from a safe distance.
    Source: Courtesy of Head-Smashed-In Buffalo Jump

  • Representation of an early hunter drawing a bow<br/>Source: Courtesy of Head-Smashed-In Buffalo Jump

    Bow and arrow technology reaches present-day Alberta.

    Bow and arrow technology in North America appears to have developed first in the Arctic before spreading south throughout the continent. The bow and arrow was ideally suited for use in the wide open spaces of the Great Plains, and was widely adopted across the region.
    Source: Courtesy of Head-Smashed-In Buffalo Jump

  • Petroglyph of a mounted hunter chasing a bison, Milk River<br/>Source: Royal Alberta Museum

    The ‘Horse Revolution’ begins in present-day Alberta.

    Horses were brought to North America by Spanish colonists in the sixteenth century. From the Spanish colony of New Mexico, horses spread across North America, reaching present-day Alberta in the 1730s. The adoption of the horse had a significant impact on the hunting/transportation patterns of Plains First Nations peoples.
    Source: Royal Alberta Museum

  • Swimmers Enjoying the Banff Hot Springs, ca. 1935<br/>Source: Whyte Museum of the Canadian Rockies, v263-na-3562

    Rocky Mountains National Park is established by the Canadian government.

    One of the main attractions of the new park was the site’s natural hot springs. The luxurious Banff Springs Hotel, built by the Canadian Pacific Railway in 1888, pumped water from the hot springs into its swimming pools and treatment rooms. Tourists flocked to the site to take advantage of the water’s supposed therapeutic healing powers.
    Source: Whyte Museum of the Canadian Rockies, v263-na-3562

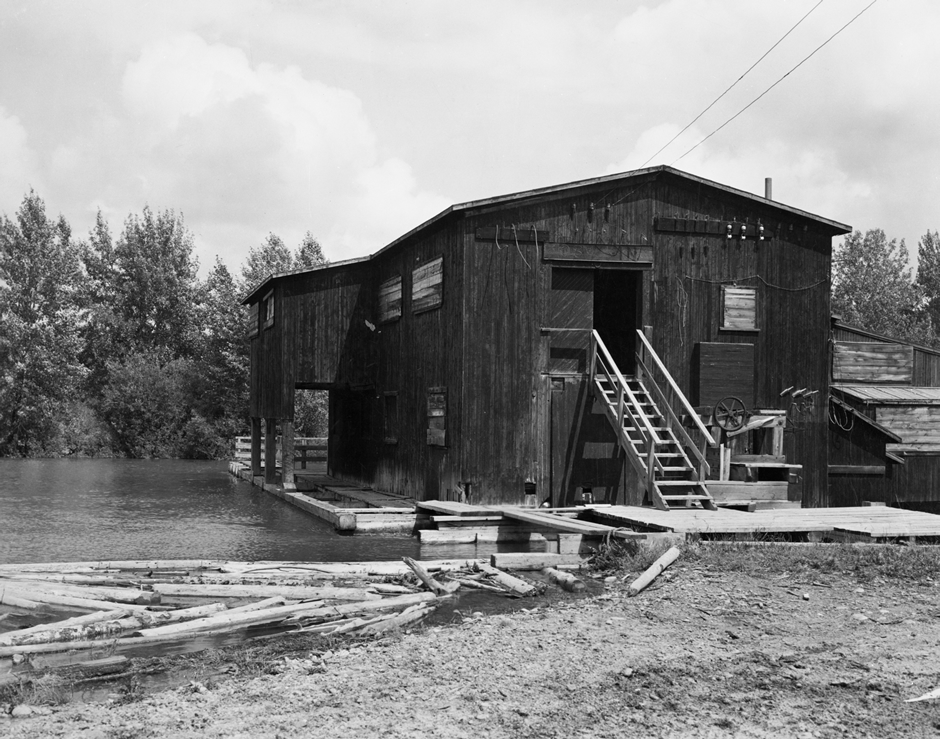

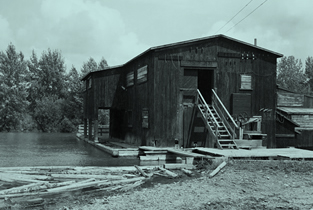

  • Calgary Water Power Company hydroelectric plant, n.d.<br/>Source: Glenbow Archives, NA-4477-44

    The Calgary Water Power Company opens Alberta’s first hydroelectric plant.

    The company was owned by entrepreneur Peter Prince, who also ran the Eau Claire & Bow River Lumber Company. From 1894 to 1905, the company was the major electricity provider for the city of Calgary.
    Source: Glenbow Archives, NA-4477-44

  • The city power plant in Edmonton, 1912<br/>Source: Glenbow Archives, NC-6-271

    The City of Edmonton purchases the Edmonton Electric Lighting Company.

    The decision in favour of public ownership was made after repeated disruptions in service from the privately-owned utility. Edmonton was the first major urban centre in Canada to own its own electricity utility.
    Source: Glenbow Archives, NC-6-271

  • Changing the name from Calgary Power to TransAlta, 1981<br/>Source: Photo courtesy of TransAlta

    The Calgary Power Company is formed.

    The founder of the company, Max Aitken, was initially drawn to the region by its vast hydroelectricity potential. The company would develop into Canada’s largest investor-owned utility. In 1981, the company changed its name to TransAlta Utilities Corporation, in order to better reflect its provincial reach.
    Source: Photo courtesy of TransAlta

  • Calgary Power’s power house at Horseshoe Falls on the Bow River, ca. 1912<br/>Source: Glenbow Archives NA-3544-28

    Alberta’s First hydroelectric dam opens at Horseshoe Falls.

    Owned and operated by Calgary Power, the Horseshoe Falls Dam was the first of two such facilities built on the Bow River system prior to the First World War. A second hydroelectric dam began operations at Kananaskis Falls in 1913.
    Source: Glenbow Archives NA-3544-28

  • Ghost Hydroelectric Dam, 1935<br/>Source: Glenbow Archives, NA-5663-44

    The Ghost Hydroelectric Dam begins operations

    This massive facility was the largest hydroelectric dam in Alberta at the time it was built. The Ghost Power Plant more than doubled the amount of electricity generated by Calgary Power, which was already the province’s main energy supplier.
    Source: Glenbow Archives, NA-5663-44

  • Rural electrification crew at work near Irma, 1951<br/>Source: Glenbow Archives, NA-4160-20

    The first Rural Electrification Association (REA) in Alberta is established in Springbank.

    Over the next two decades, a total of 416 REAs would be established across the province. These organizations would play a crucial role in the spread of electricity to rural Alberta.
    Source: Glenbow Archives, NA-4160-20

  • CCF Advertisement in the People’s Weekly, August 14, 1948, urging people to support public utility ownership<br/>Source: Image courtesy of Peel’s Prairie Provinces, a digital initiative of the University of Alberta Libraries

    Voters of Alberta narrowly reject proposal for public ownership of electricity utilities.

    The 1948 provincial election included a plebiscite concerning ownership of electricity utilities in Alberta. Rural areas largely voted in favour of public ownership, while urban voters (particularly in southern Alberta) supported a continuation of private ownership. In the end, the vote was extremely close, with public ownership defeated by a mere 151 votes.
    Source: Image courtesy of Peel’ Prairie Provinces, a digital initiative of the University of Alberta Libraries

  • Five of the turbines installed at Cowley Ridge Wind Farm<br/>Source: Photo courtesy of TransAlta

    Cowley Ridge Wind Farm begins operations near Pincher Creek.

    Cowley Ridge was Canada’s first commercial wind farm. A total of fifty-two wind turbines were installed in 1993-94. In 2000, the project was expanded with the addition of fifteen new (and much more powerful) turbines.
    Source: Photo courtesy of TransAlta

  • Aerial view of Drake Landing Solar Community<br/>Source: Wikimedia Commons/CA-BY-SA-3.0

    Drake Landing Solar Community opens near Okotoks, Alberta.

    Drake Landing is North American’s first fully integrated solar community. This award-winning initiative uses solar heating technology to provide the community with the majority of its space heating and hot water needs.
    Source: Wikimedia Commons/CA-BY-SA-3.0

  • AAdvanced Energy Research Facility, Edmonton, 2011LT<br/>Source: Photo Courtesy of Enerkem

    The City of Edmonton announces the launch of the ‘waste-to-biofuels’ project.

    The waste-to-biofuels project will convert garbage into biofuel by harvesting carbon from the waste material. The project includes an Advanced Energy Research Facility, which opened in 2012.
    Source: Photo Courtesy of Enerkem

Play Timeline

Hydro Power

Hydro power historically has been one of Alberta’s oldest and most important sources of energy. For over two thousand years, humans have developed ways to harness the energy of moving water. The specific forms of hydro power have evolved tremendously over the centuries, from simple water wheels used to operate small mills to vast hydroelectric dams that help power cites. Regardless of scale, the basic principle behind hydro power has remained the same: the kinetic energy of water is converted into mechanical energy and used to generate power or, with turbines, electricity.

Hydroelectricity is a clean, renewable energy and has remained an important source of power in many parts of the world, including Canada. In 2013, for example, Canada ranked third behind only China and Brazil in hydroelectricity production. The fuel, flowing water, is free and self-renewing, and can be stored in reservoirs until needed. Hydroelectricity produces no pollution, though the damming of rivers can have a dramatic and adverse impact on

surrounding ecosystems. This negative impact can be mediated somewhat by run-of-the-river projects, which harness the energy of rivers without creating large storage reservoirs and flooding the surrounding area. Such projects tend to be much smaller than conventional hydro dams, however, and produce considerably less power. They are also subject to fluctuations in precipitation, since they cannot store water to compensate for periods of limited rainfall.

Hydro power has historically been one of Alberta’s most important sources of energy. Some of the province’s earliest power-generating stations were hydroelectric, and up until the 1950s, the majority of Alberta’s power came from rivers. Hydroelectricity evolved in the early twentieth century to meet the enormous power demands of a dynamic, rapidly growing province. In many ways, the history of hydro power reflects many of the broader themes in the history of modern Alberta and comprises an essential part of the province’s energy and resource history.

In this Section

Ancient Times:
ca. 300 BCE–500 CE

Long before hydro power began providing electricity, it was used to perform simple but labour-intensive tasks.

Middle Ages:
ca. 500 CE–1500 CE

Between 500 and 1500 CE, the use of hydro power exploded across much of Europe and Asia.

Early Modern to the Industrial Age:
ca. 1500–1850

In the early modern period, water power continued to be used throughout the world for traditional purposes like milling grain and lifting water.

Modern Hydroelectric Power:
1850 to Present

Water power had played a crucially important role in the early stages of industrialization in Britain and America.

Early Alberta Hydro History: to 1913

The early development of hydroelectric power in Alberta was a direct product of the province’s great immigration and settlement boom of the early twentieth century.

Evolution of an Industry: 1913-1945

Even before the Kananaskis project was finished, engineers began to address the most significant problem with hydro development on the Bow River—irregular water flow.

Post World War II Hydro Developments

After the war, the need for new generating capacity remained strong. Many expected a collapse, but it failed to materialize.

Hydroelectricity in Alberta Today

In the early 1950s, about half the province’ installed capacity was hydroelectric. Currently the hydro capacity is about seven percent of the total.
